Electromechanical Actuator
ServoMax® Series
for 600~5,000kg Level UAV, UAM
600~5,000kg Level UAV, UAM

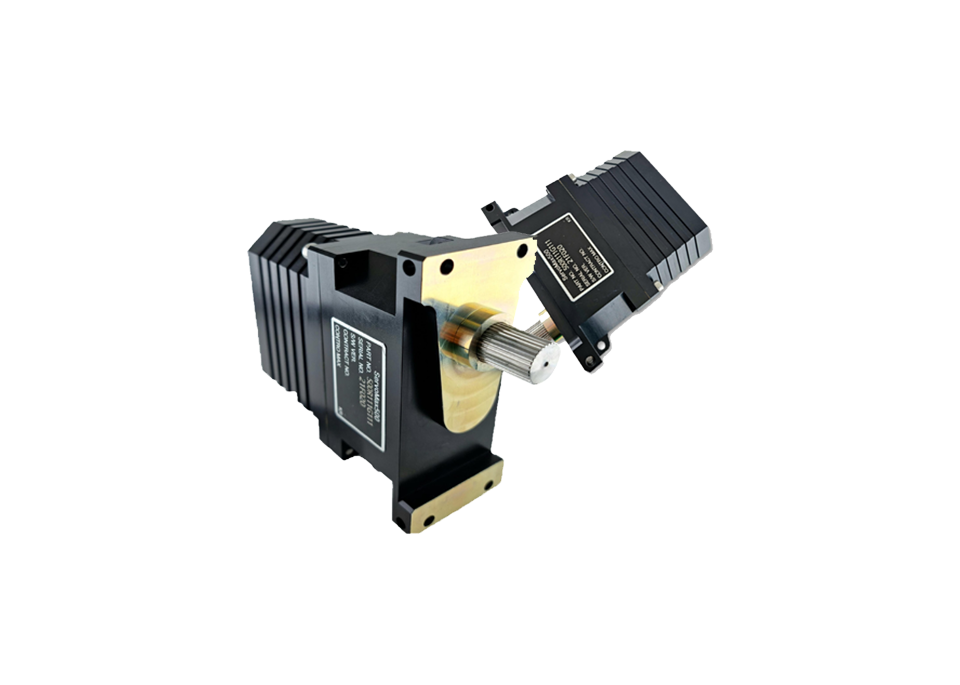

ServoMax800
내용이 필요합니다.
Characteristics
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
Specifications
-
Processor
High Performance DSP
-
Motor
Permanent Magnet Synchronous
-
Position Sensor
Contactless
-
Databus
Dual CAN 2.0A/B
-
Rated Torque
≥ 765kgf · cm
-
Max. Operating Torque
≥ 920kgf · cm, Limited Time
-
Rated Speed
≥ 92°/s @28VDC
-
No Load Speed
≥ 126°/s @28VDC
-
Operating Voltage
22 ~ 32VDC
-
Angular Backlash
≤ 0.3°
-
Position Accuracy
≤ 0.5°
-
Bandwidth
≥ 5Hz@2° · Sine Wave
-
Weight
≤ 4kg
-
Gears
Stainless Steel
-
Housing
Aluminum, Anodized
-
Max. Travel Range
±170°
-
Connector
Aerospace grade Circular Connector
-
Operating Temperature
-40°C ~ 71°C
-
Environmental Qualifications
MIL-STD-810x, Selected Items
-
Electromagnetic Compliance
MIL-STD-461x, Selected Items
-
MTBF
≥ 20,000Hr

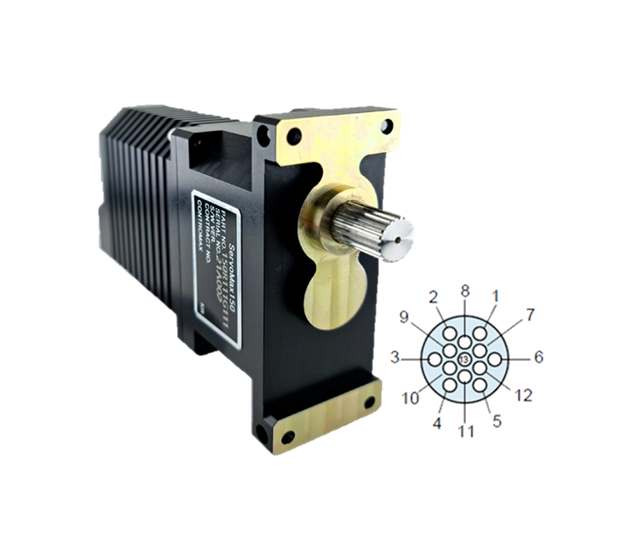

Interface
| Pin No. | Function | AWG | Max. Current | Wiring |
|---|---|---|---|---|
| 1 | CAN A_H | 22 ~ 24 | - | Twisted Pair, Shield |
| 2 | PWR_IN | 22 | 3 | - |
| 3 | PWR_RET | 22 | 3 | - |
| 4 | CAN B_H | 22 ~ 24 | - | Twisted Pair, Shield |
| 5 | CAN A_L | 22 ~ 24 | - | Twisted Pair, Shield |
| 6 | PWR_IN | 22 | 3 | - |
| 7 | PWR_RET | 22 | 3 | - |
| 8 | CHASSIS | 22 | - | - |
| 9 | CAN B_L | 22 ~ 24 | - | Twisted Pair, Shield |

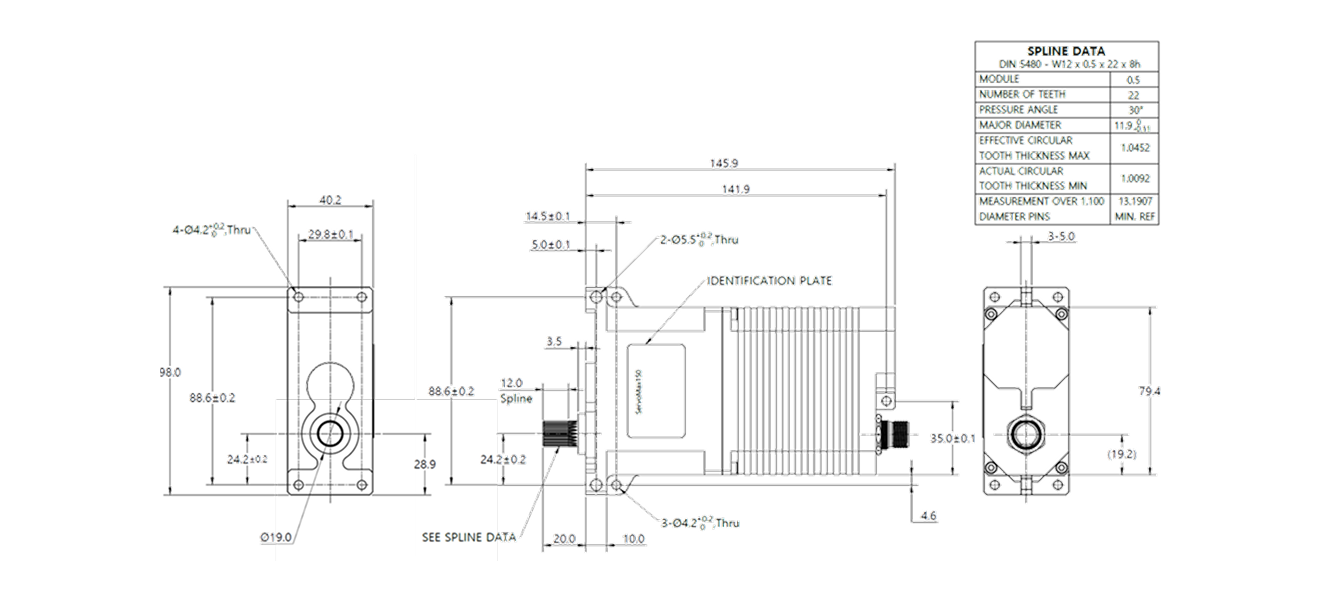

Dimension

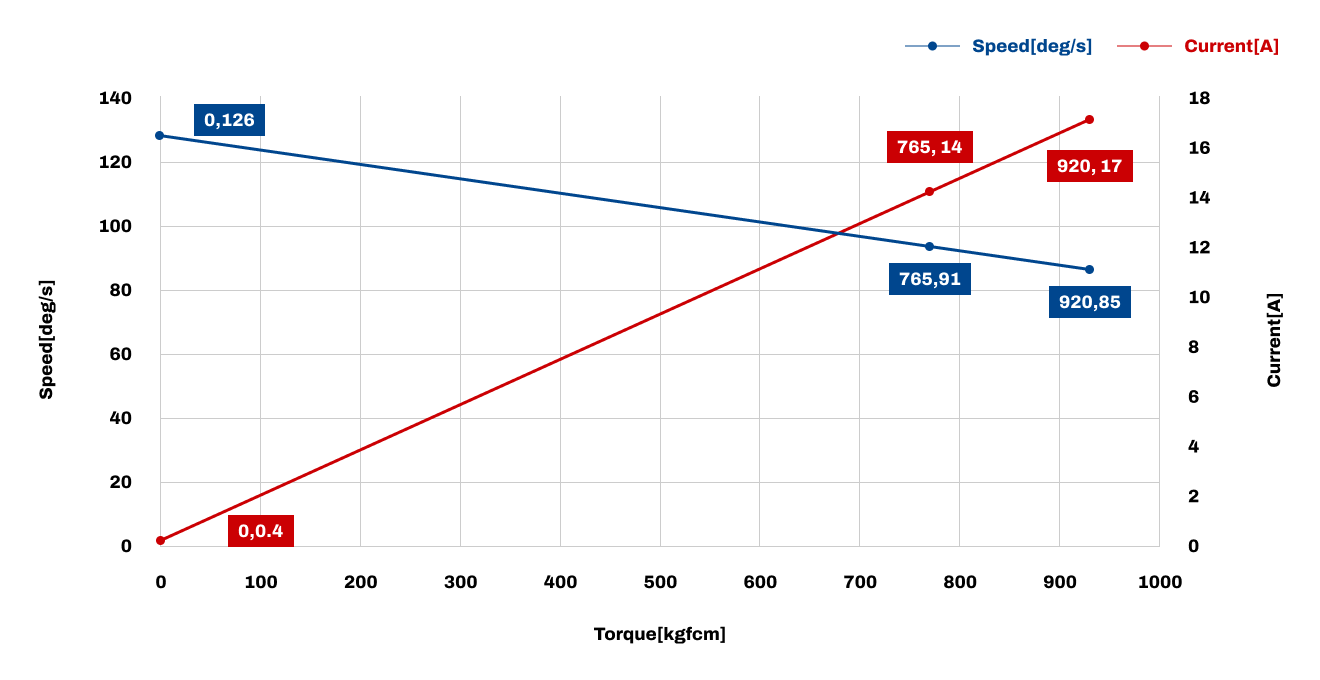

NTI Chart
