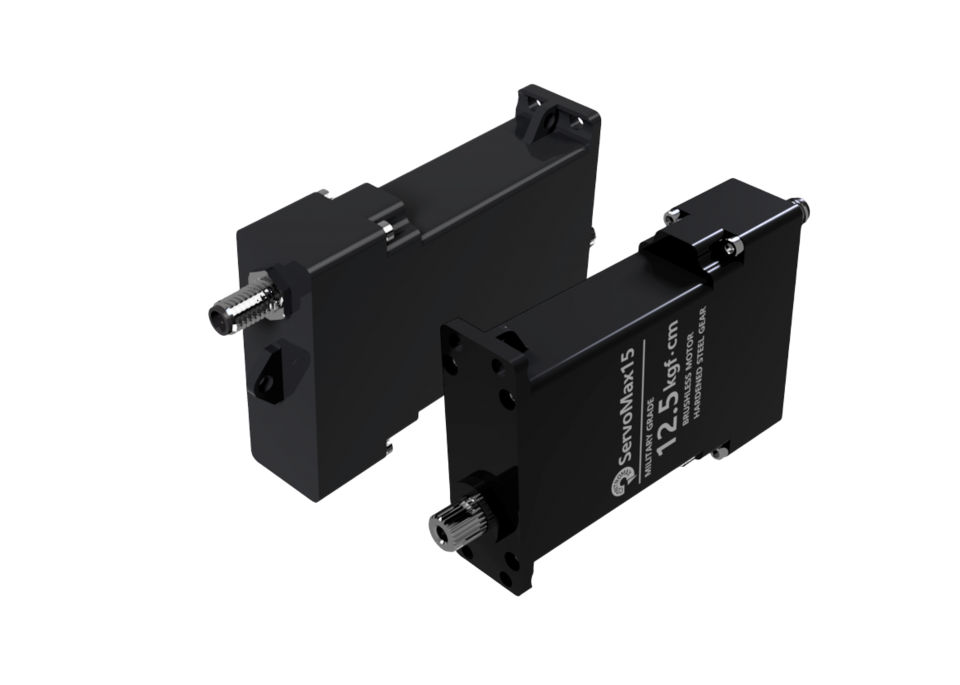

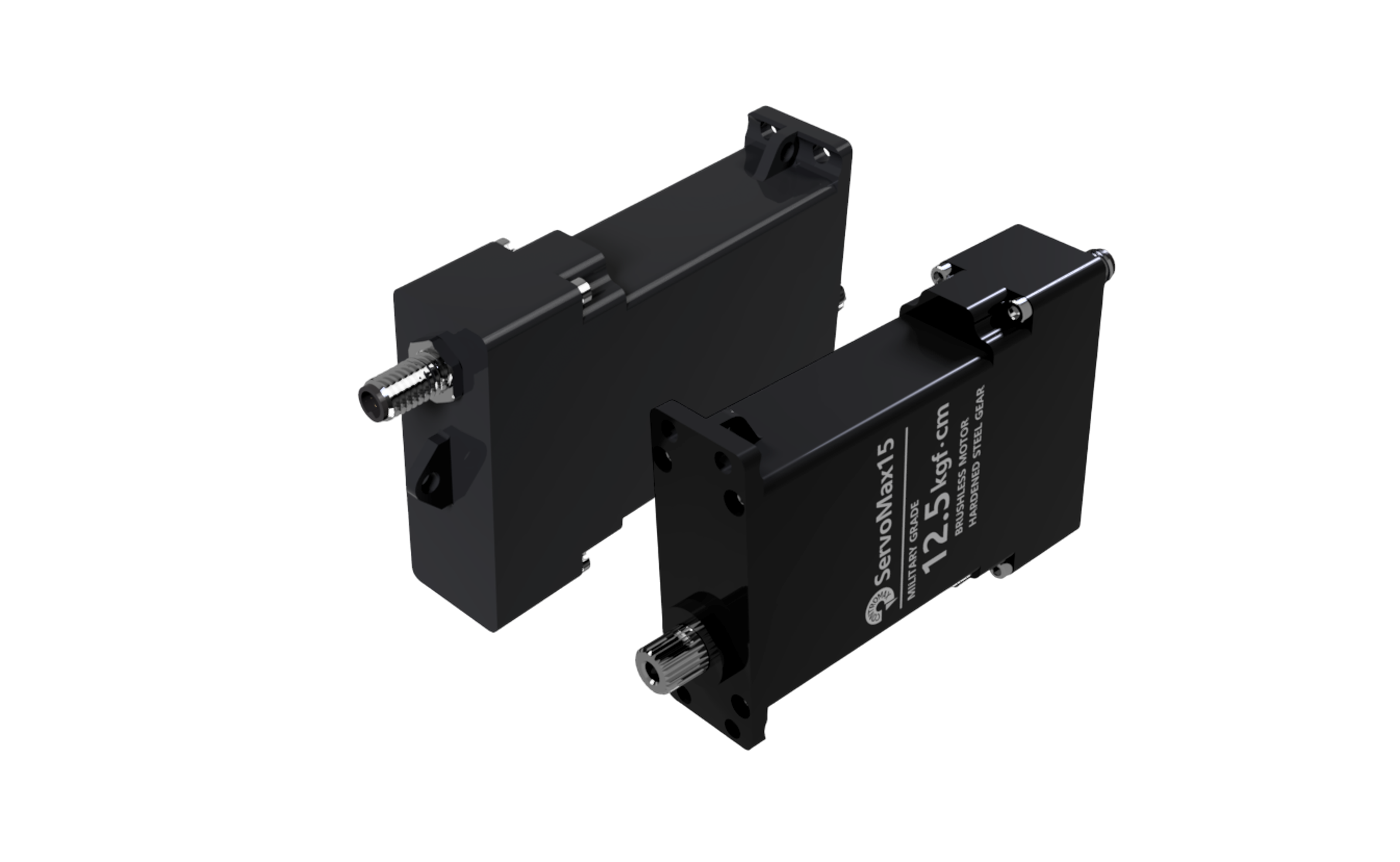

ServoMax® Series

Processor

High Performance DSP

Motor

Permanent Magnet Synchronous

Position Sensor

Contactless

Databus

CAN / PWM / RS485

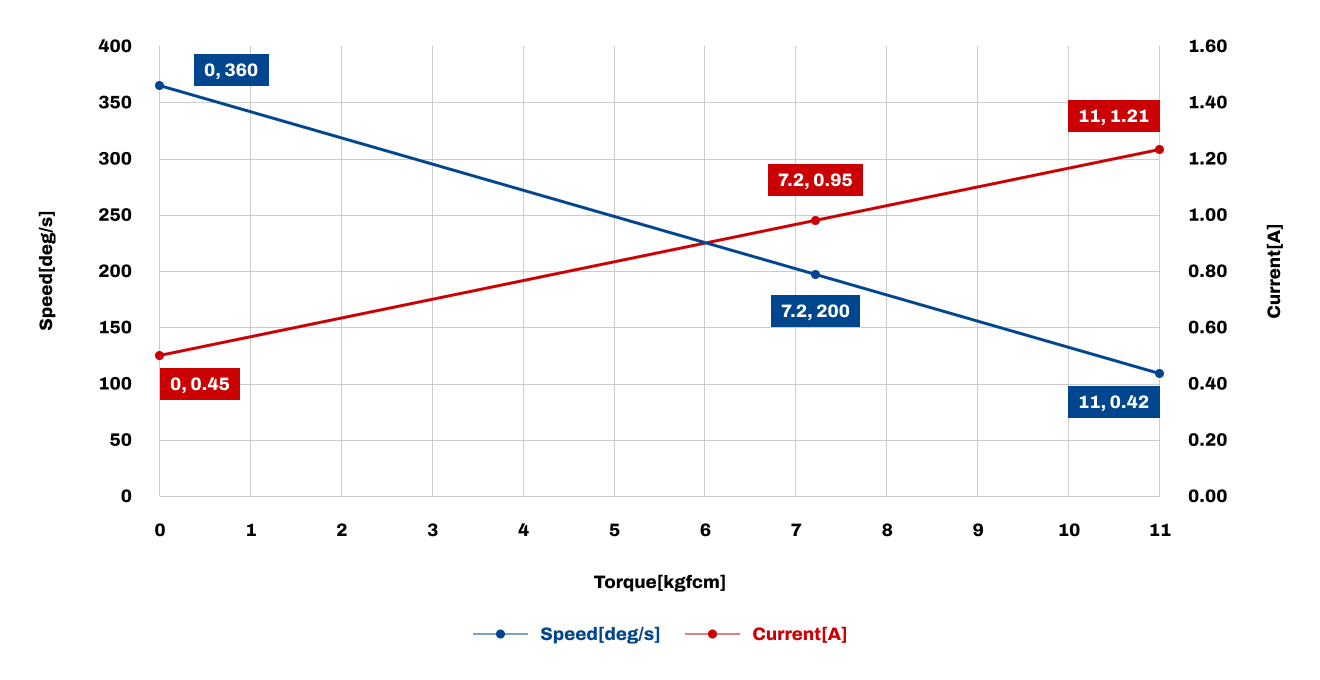

Rated Torque

≥ 7.2kgf · cm

Max. Operating Torque

≥ 11.0kgf · cm, Limited Time

Rated Speed

≥ 200°/s@7.4VDC

No Load Speed

≥ 360°/s@7.4VDC

Operating Voltage

6.0 ~ 8.4VDC

Angular Backlash

≤ 0.3°

Position Accuracy

≤ 0.5°

Bandwidth

≥ 5Hz@2°Sine Wave

Weight

≤ 75g

Gears

Stainless Steel

Housing

Aluminum, Anodized

Max. Travel Range

±170°

Connector

Aerospace grade, Circular Connector

Operating Temperature

-40°C ~ 71°C

Environmental Qualifications

MIL-STD-810x, Selected Items

Electromagnetic Compliance
