Electromechanical Actuator
ServoMax® Series
for 600~5,000kg Level UAV, UAM
150~600kg Level UAV

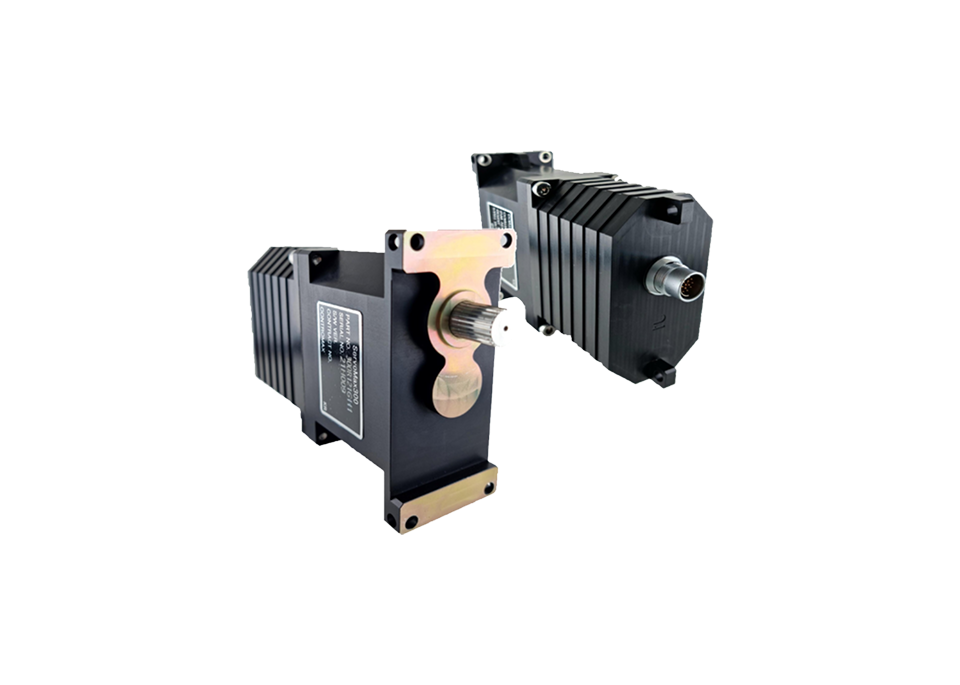

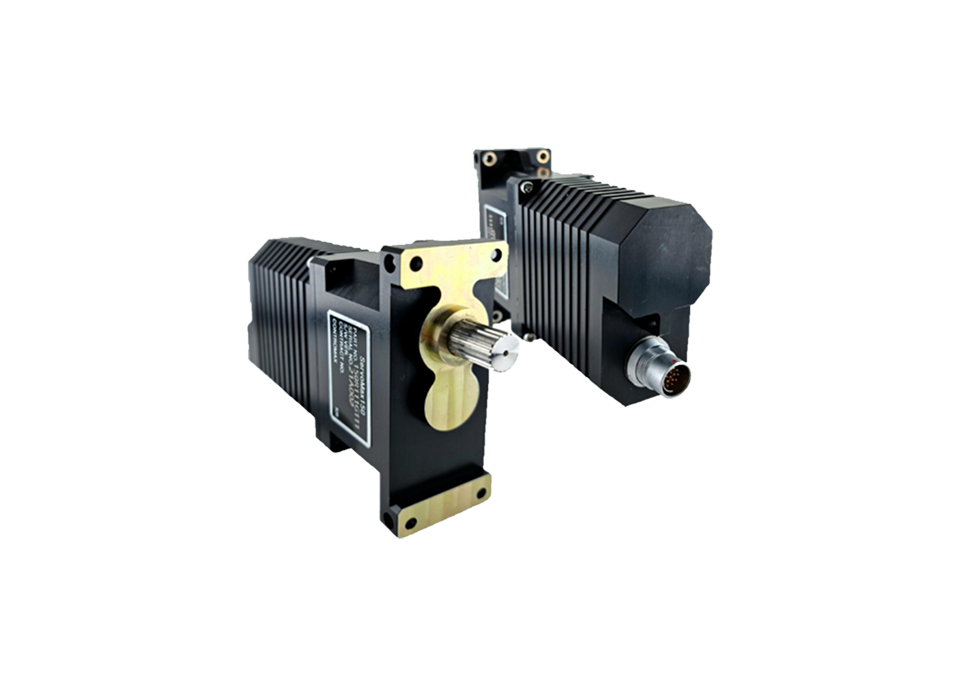

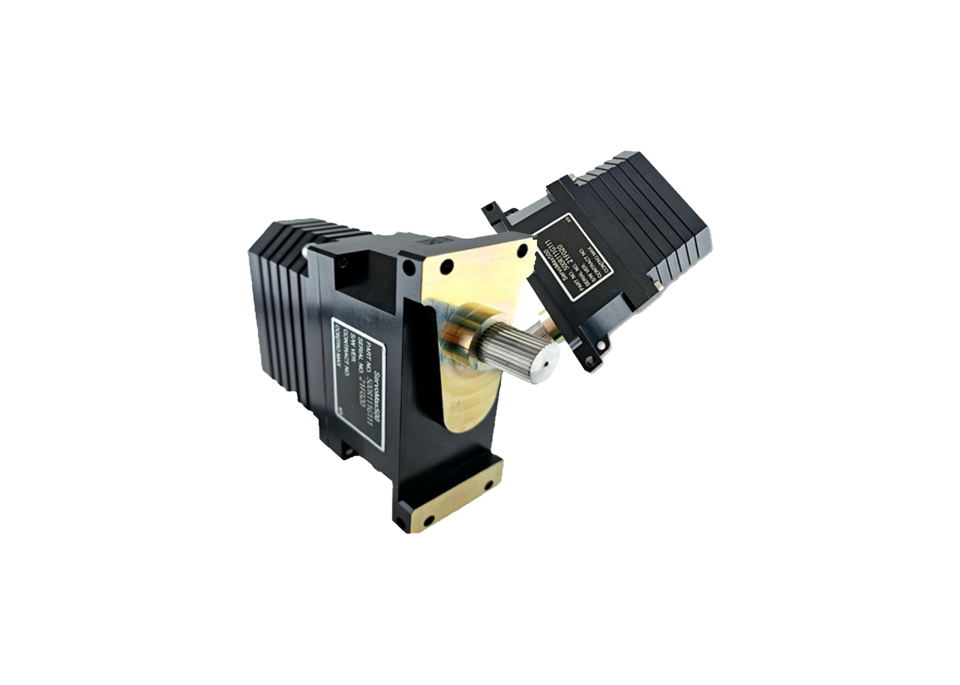

ServoMax150
내용이 필요합니다.
Characteristics
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
Specifications
-
Processor
High Performance DSP
-
Main Components
High reliability motor & Contactless position sensor
-
Interface
CAN2.0A 2ch.
-
Rated Torque
132.6kgf · cm(13Nm)
-
Max. Operating Torque
204kgf · cm(20Nm)
-
Rated Speed
145°/s@28VDC
-
No Load Speed
170°/s@28VDC
-
Operating Voltage
18 ~ 31VDC
-
Rated Current
2.5A
-
Control Accuracy
≤ 0.5°
-
Bandwidth
5Hz@2° · Sine wave
-
Weight
885g
-
Stainless Steel Gear, Aluminum Case(With anodized)
-
Max. Travel Angle
±170°(Mechanical Stop-Optional)
-
Connector
Circular
-
Operating Temperature
-40°C ~ 71°C
-
MIL-STD-810G / MIL-STD-461 Satisfied
-
MTBF
2,000hr@50% Rated Torque(rms)
-
EMI Filter
-
Jittering Minimizing Algorithm Applied
| Pin# | Function | Notes |
|---|---|---|
| 1 | N/C | - |
| 2 | CAN A_H | - |
| 3 | 28/14Vdc, PWR | - |
| 4 | 28/14Vdc, RET | - |
| 5 | N/C | - |
| 6 | N/C | - |
| 7 | N/C | - |
| 8 | CAN B_H | - |
| 9 | CAN A_L | - |
| 10 | 28/14Vdc, PWR | - |
| 11 | 28/14Vdc, RET | - |
| 12 | Chassis | - |
| 13 | CAN B_L | - |
Receptacle : Glenair 801-011-07M8-13PA
Mating(Plug) Connector : Glenair 801-007-16M8-13SA or Cinch MD801-007-16M8-13SA

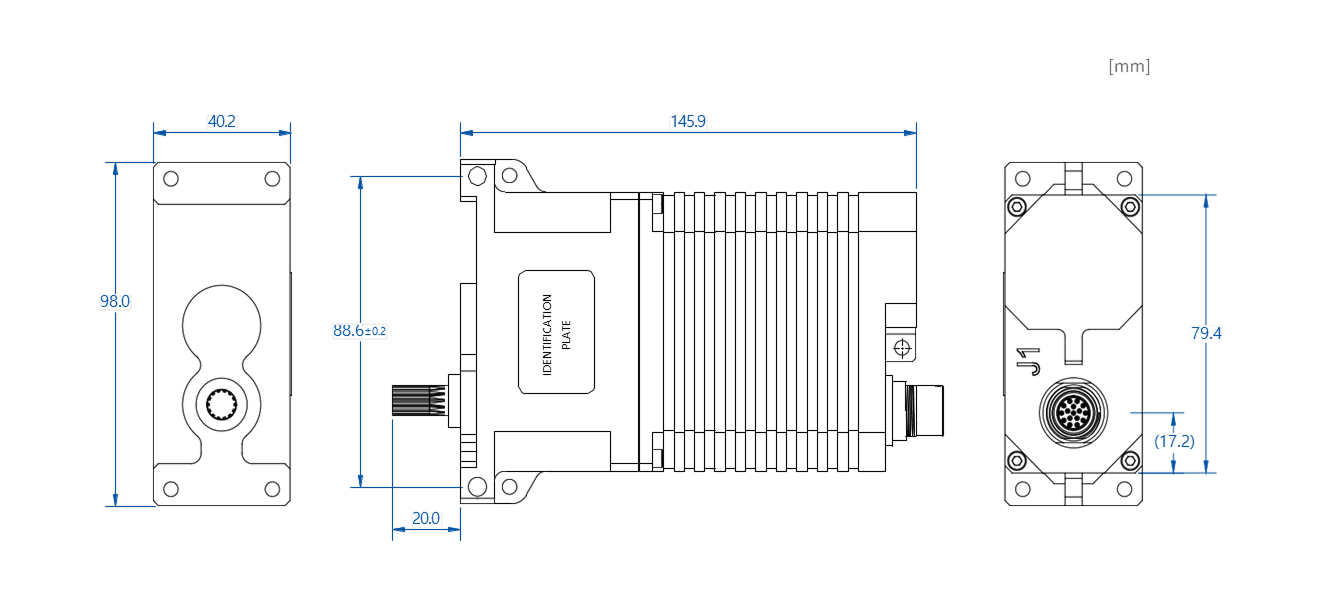

Dimension
