Electromechanical Actuator
ServoMax® Series
for 150~600kg Level UAV
150~600kg Level UAV

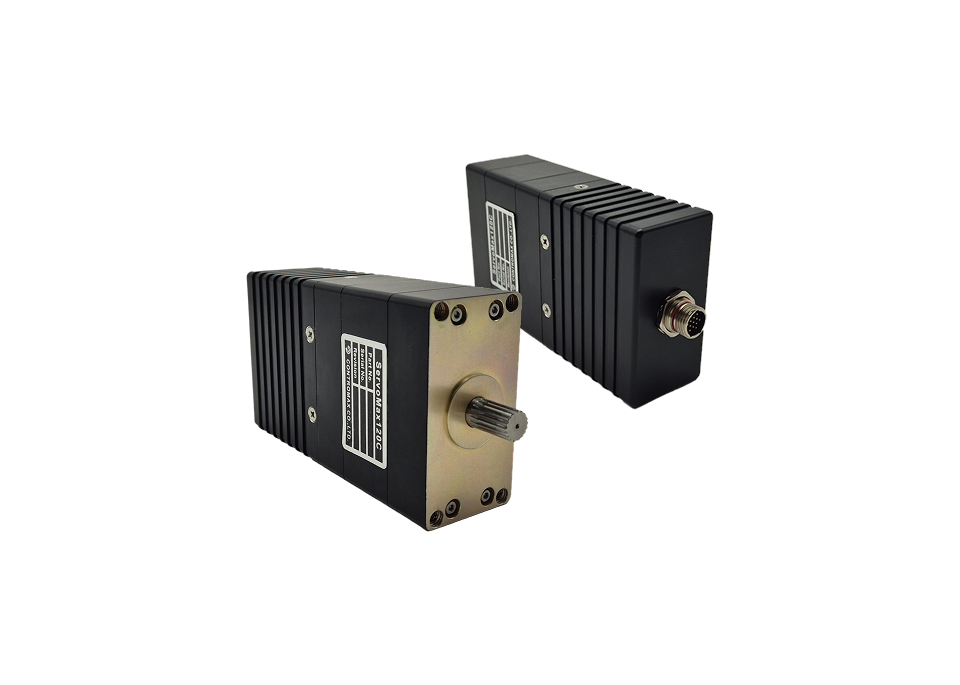

ServoMax120C
내용이 필요합니다.
Characteristics
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
- 내용이 필요합니다.
Specifications
-
Motor
High Performance DSP
-
Position Sensor
Contactless
-
Databus Interface
Dual CAN
-
Rated Torque
100kgf · cm
-
Max. Torque(Short term use only)
120kgf · cm
-
Rated Speed
60°/s@28VDC
-
No Load Speed
110°/s@28VDC
-
Operating Voltage
18 ~ 32VDC
-
Rated Current
2.2A(Peak Current 6.5A)
-
Control Accuracy
≤ 0.5°
-
Bandwidth
≥ 3.5Hz@2°(3kgf · cm)sine wave
-
Weight
780g
-
Max. Travel Angle
±45°(No Mechanical Stop)
-
Connector(Receptacle)
GLENAIR 801-011-07M8-13PA(-501)
-
Operating Temperature
-32°C ~ 55°C
-
Environmental Conditions
Selected Items only and Similarity with MIL-STD-810G
-
Electromagnetic Compliance
Selected Items only and Similarity with MIL-STD-461G

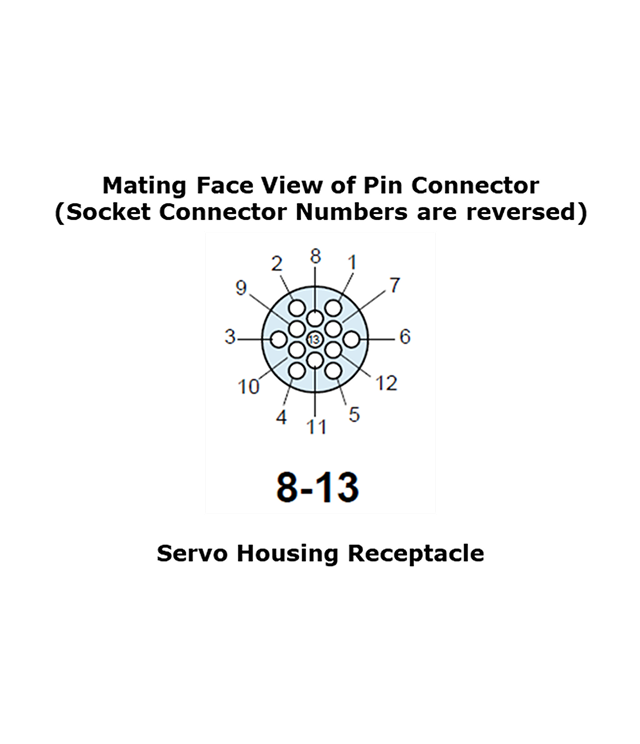

| Receptacle | GLENAIR, 801-011-07M8-13PA(-501) |
|---|---|
| Mating Plug | GLENAIR, 801-007-16(26)M8-13SA or Cinch MD801-007-16(26)M8-13SA |
| Pin | Name | SMR120C | AWG | Max. Current | Remarks |
|---|---|---|---|---|---|
| 1 | CAN A_H | O | 22 ~ 24 | - | Twisted Pair, Shield |
| 2 | PWR_IN | O | 22 | 3 | - |
| 3 | PWR_RET | O | 22 | 3 | - |
| 4 | CAN B_H | O | 22 ~ 24 | - | Twisted Pair, Shield |
| 5 | CAN A_L | O | 22 ~ 24 | - | Twisted Pair, Shield |
| 6 | PWR_IN | O | 22 | 3 | - |
| 7 | PWR_RET | O | 22 | 3 | - |
| 8 | CHASSIS | O | 22 | - | - |
| 9 | CAN B_L | O | 22 ~ 24 | - | Twisted Pair, Shield |
Reference Only, please see the manufacturer’s options for different locking mechanism
Dimension

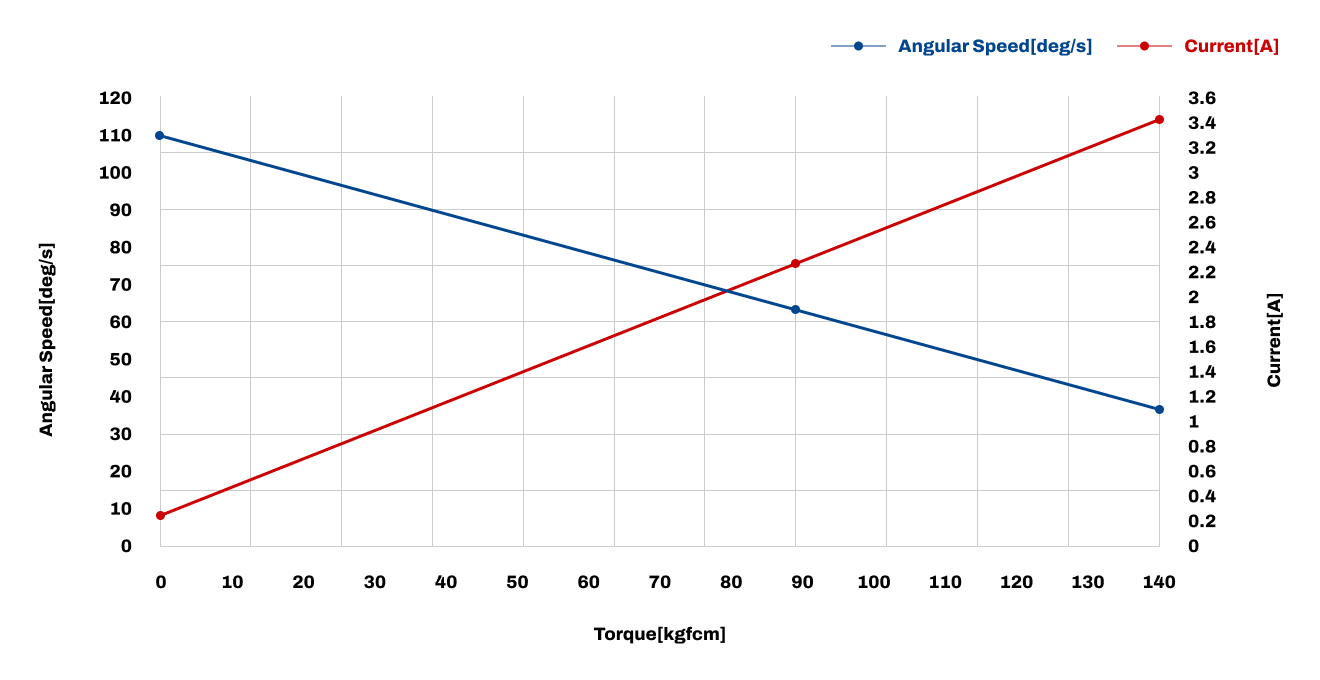

NTI Chart
CAN Databus
Interface
-
Revision CAN2.0B
-
Baudrate 1M/500k(Default)/250k/125k
-
Big Endian
-
Termination resistors not available
-
Command/Response message exchange 1 Command Message & 2(Max) Response Messages
-
Access to internal memory available for user configuration
